magnetic automation

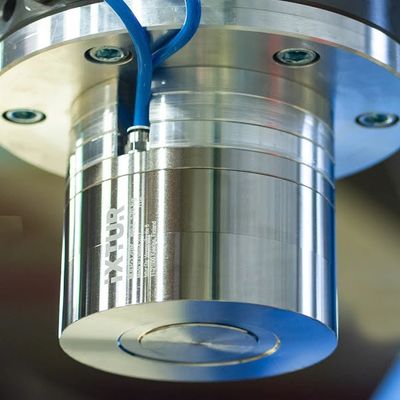

iXTUR PNEUMATIC MAGNETS
iXTUR Pneumatic powered magnets are pneumatically actuated neodymium permanent magnets, distinguished by an exceptional size-to-gripping capacity ratio and minimal residual gripping force. Their magnetic state remains stable even in the event of compressed air loss. The combination of compact form factor and substantial gripping strength enables considerable versatility. iXTUR pneumatic magnets require no maintenance and operate with short cycle times, supporting increased production speeds and efficient automation. Typical applications include lifters, robotic grippers, fixtures, and automated manufacturing processes.
FLUXUS PNEUMATIC MAGNETS
FLUXUS Pneumatic powered magnets are pneumatically actuated neodymium permanent magnets, The FA Series is a group of pneumatic switchable magnet grippers meaning they are magnets that turn on and off, and are operated by compressed air inputs. These products use a rotary pneumatic actuator with a drive shaft shaft coupled to an upper magnet in an F style magnetic housing. The rotary actuator has two positions: 0° and 180°. When the actuator is at 0°, the magnet assembly is in the off position. When air is supplied to the "A" airport, the actuator rotates to the 180° position and the magnet is on.
Fluxus FA Series pneumatic magnets offer several pole tooling options as well as PNP and NPN Solid State sensors.
FA Series Application
Applications for FA Series products include but are not limited to pick and place, bin picking, stamping press transfer, automotive body-in-white assembly, automotive powertrain component handling, and clamping fixtures.
